Physical Therapy Recumbent Bikes

Full buying guidance on seat access, stroke length, weight capacity, and room planning is below the products.

5 products

A recumbent therapy machine puts the user in a supported, seated position with their back against a pad and their feet out in front. That takes balance out of the equation, which is why these units show up in physical therapy clinics, cardiac rehab rooms, senior living gyms, and homes where someone is recovering from a stroke, a joint replacement, or a long stretch of inactivity.

Our core five span $2,495 to $5,695. The price gap is not about build quality. It is about how the user gets into the seat and how the legs actually move. Only the PhysioStep PRO has a seat that removes for wheelchair training. The PRO, MDX, and LXT all swivel a full 360 degrees. The CyclePlus and PhysioCycle XT are step-through frames with fixed seats.

Scroll past the products for a model by model comparison of seat access, stroke length, resistance, weight capacity up to 500 lbs, footprint, and which machine fits a PT clinic versus a home.

If the user cannot transfer to a seat at all, or you need a motorized passive trainer, see our Upper Body Ergometers and Arm Bikes instead.

5 products

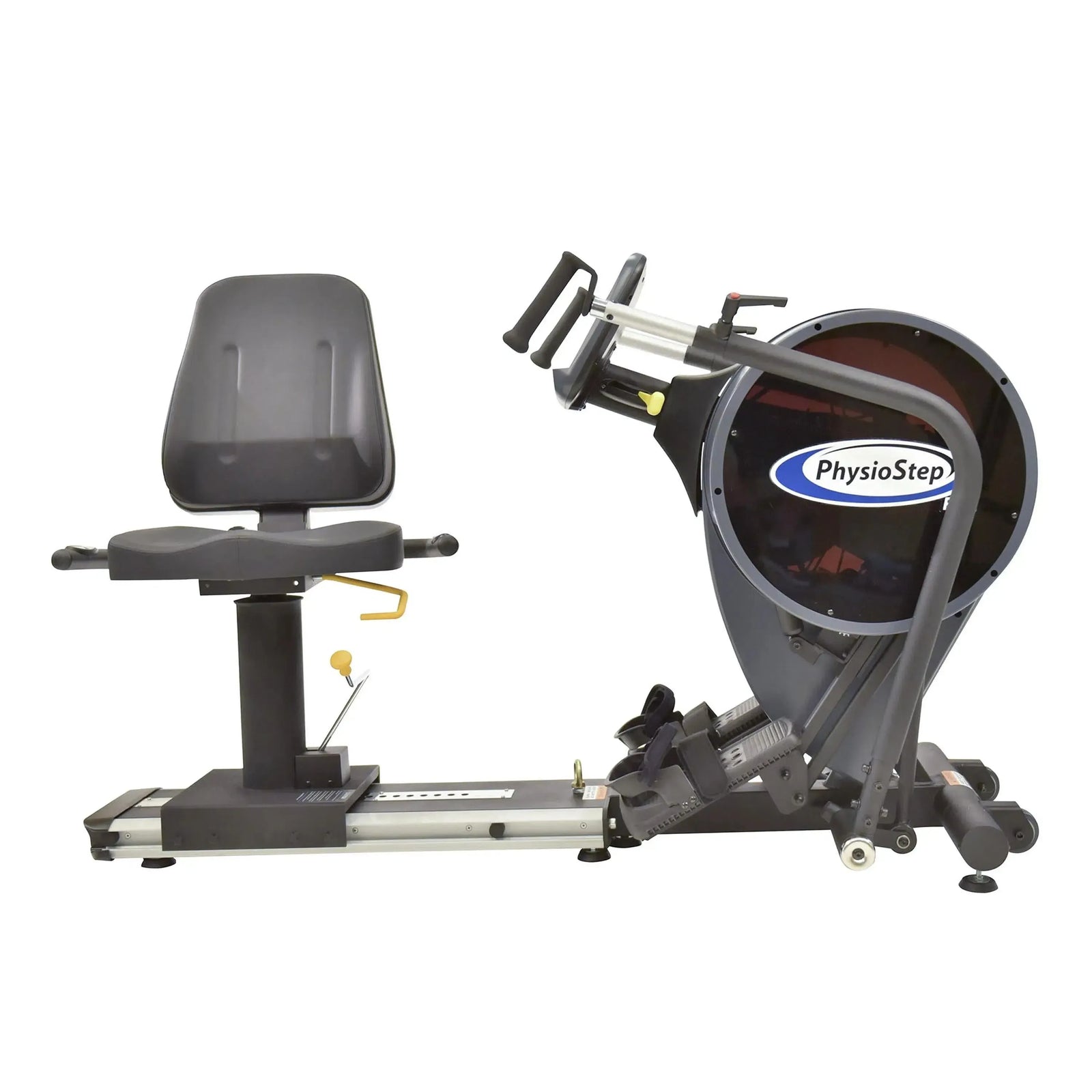

HCI PhysioStep PRO Physical Therapy Recumbent Bike SXT-1100 Muscle Recovery Physical Rehabilitation Physiotherapy Training Healthy and Safe Workout

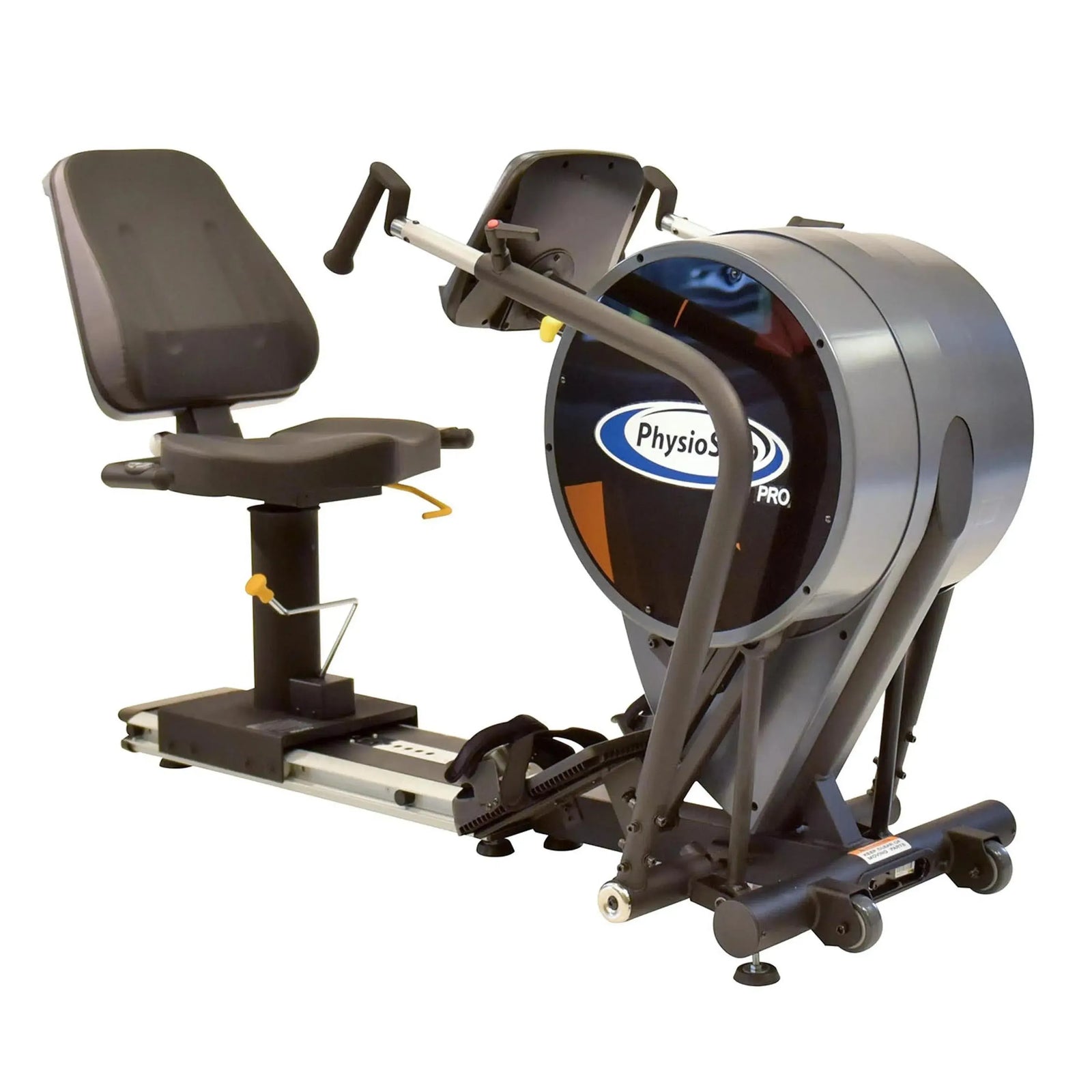

HCI PhysioStep PRO Physical Therapy Recumbent Bike SXT-1100 on display
PhysioStep PRO Physical Therapy Recumbent Bike $5,695.00

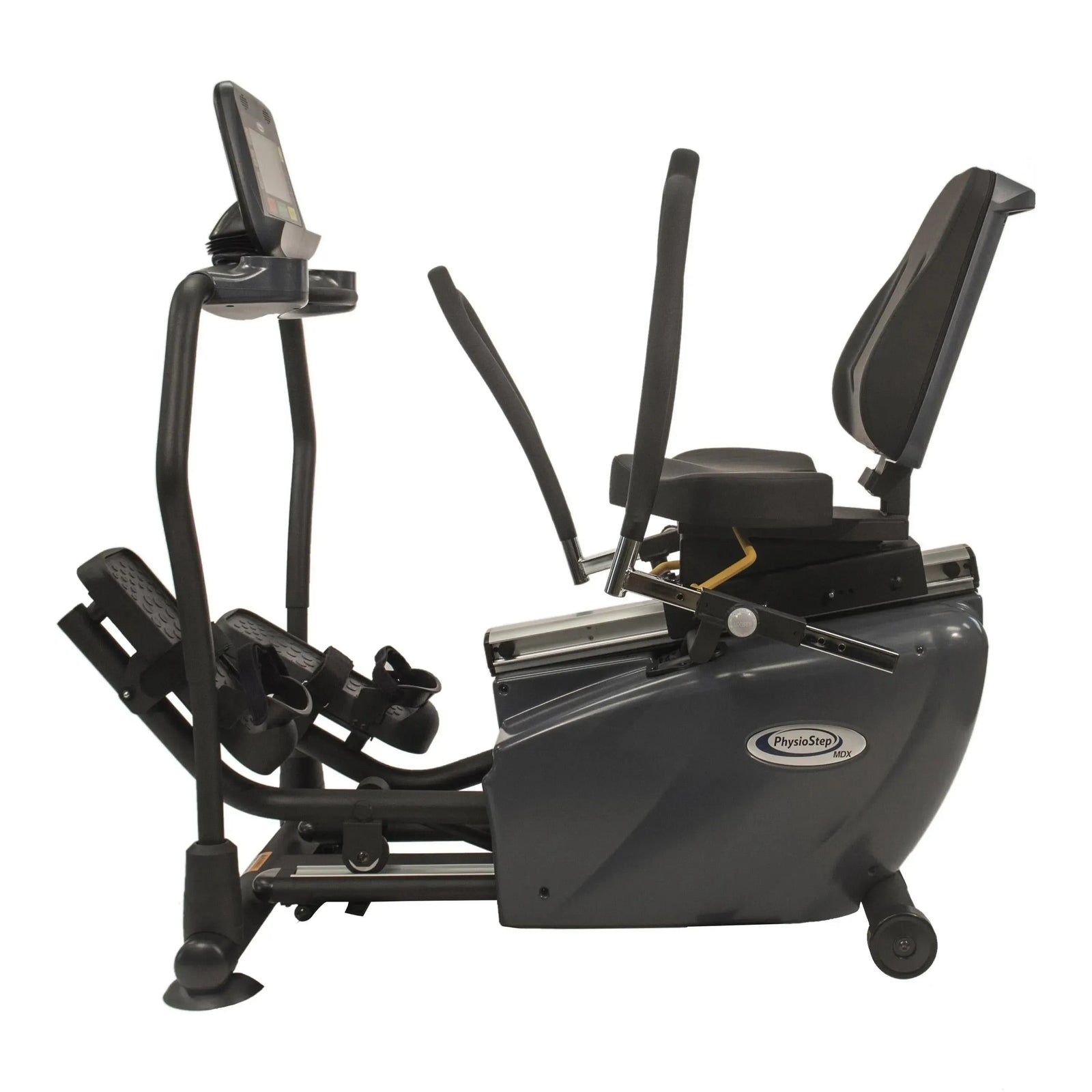

HCI PhysioStep MDX Recumbent Elliptical RXT-1000MDX Muscle Recovery Physical Rehabilitation Physiotherapy Training Healthy and Safe Workout

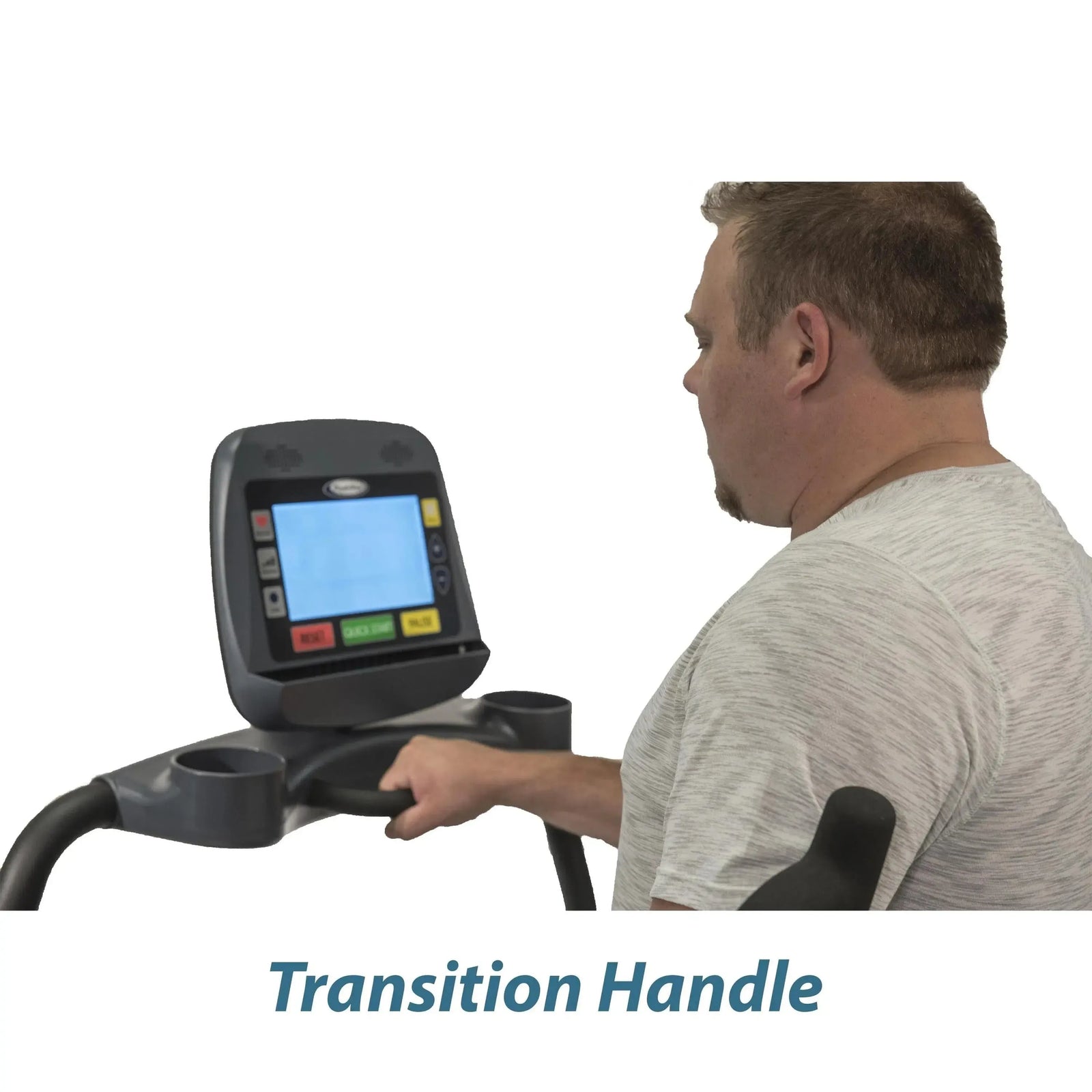

HCI PhysioStep MDX Recumbent Elliptical RXT-1000MDX transition handle
PhysioStep MDX Recumbent Elliptical $4,295.00

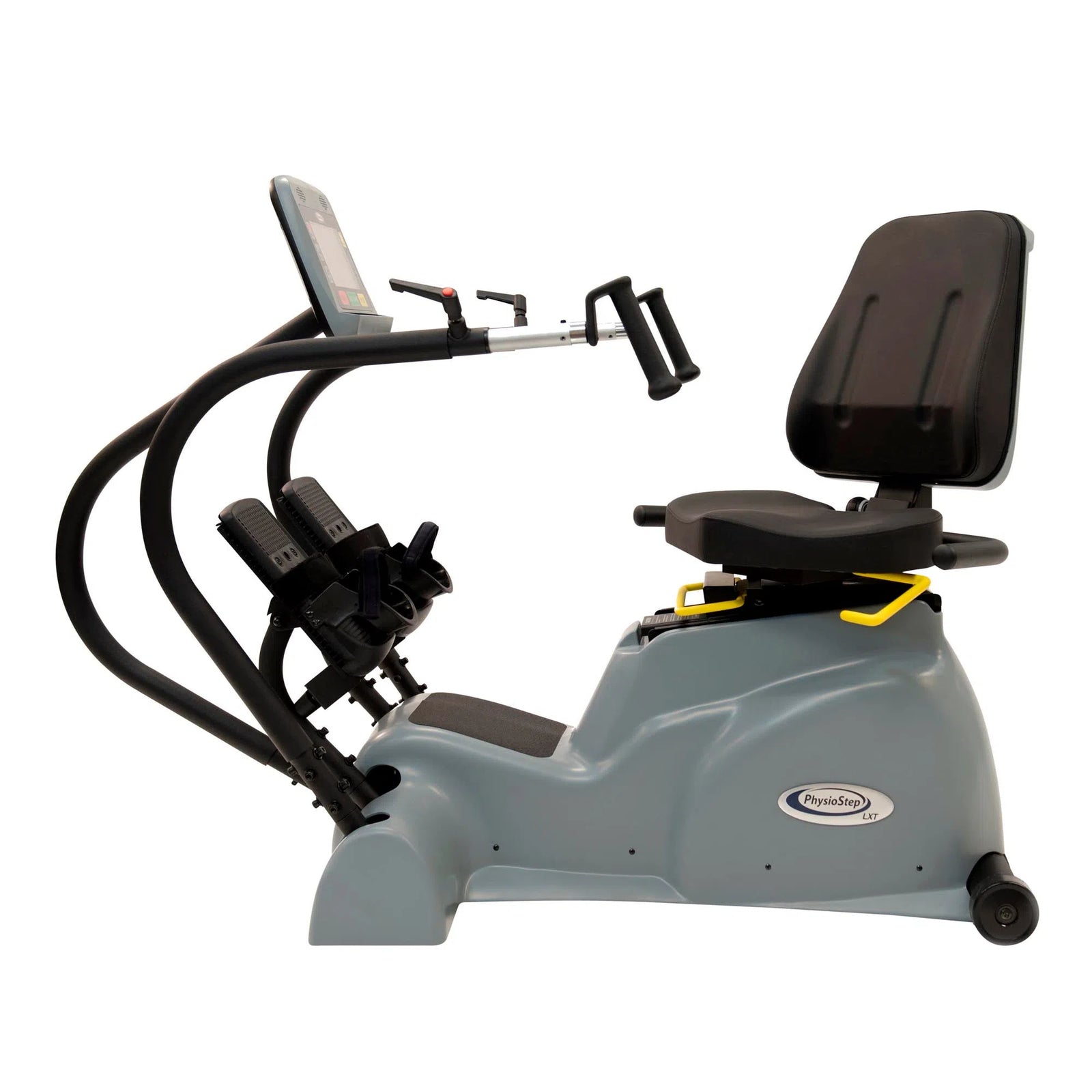

HCI PhysioStep LXT Recumbent Stepper physical rehabilitation physiotherapy Training Healthy and Safe Workout

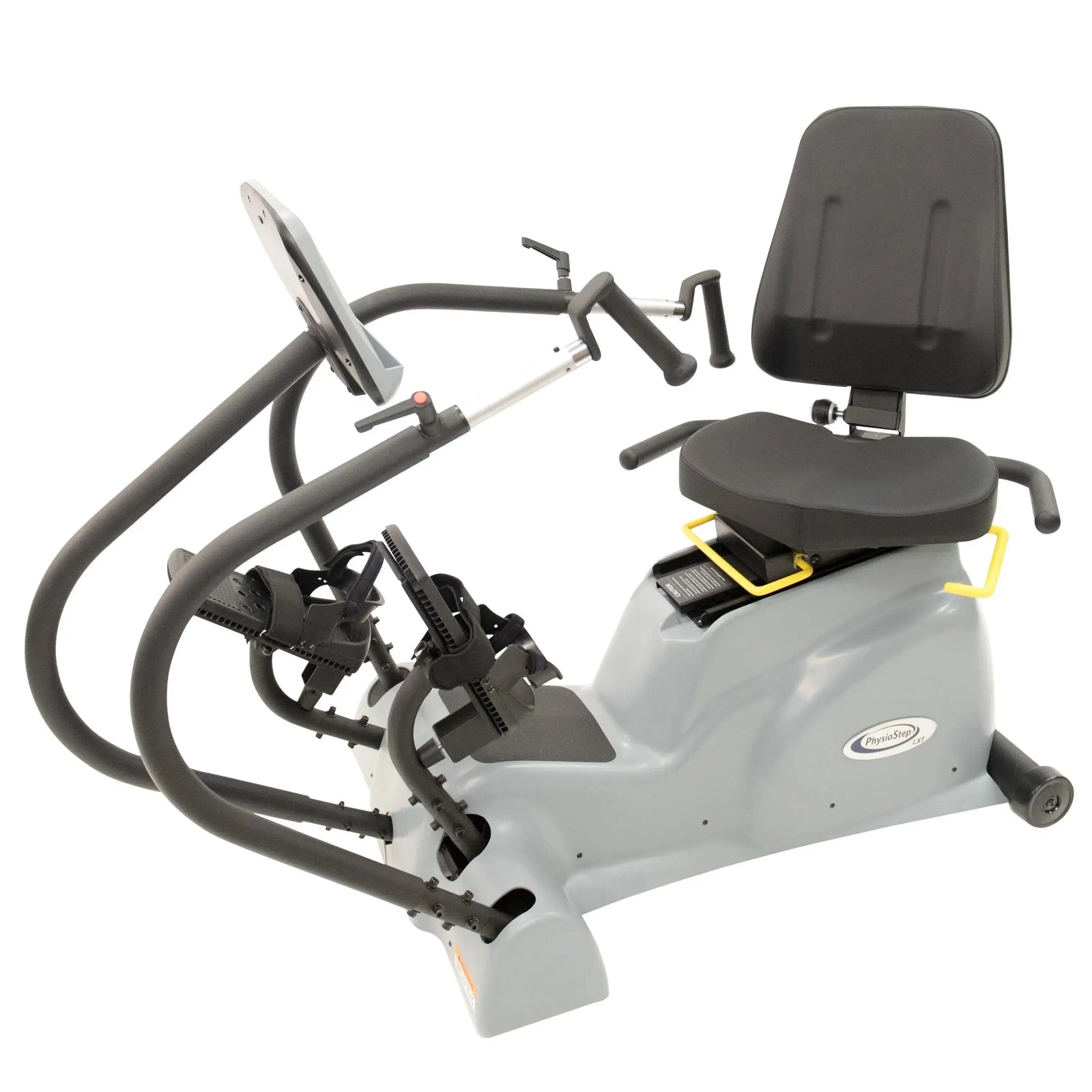

HCI PhysioStep LXT Recumbent Stepper pivoting seat
PhysioStep LXT Recumbent Stepper w/ Swivel Seat $3,995.00
CyclePlus Recumbent Bike with Arm Exercise CP-400 Muscle and Strength Training Solution Healthy and Safe Workout
A trainer assisting a woman training on the CyclePlus Recumbent Bike with Arm Exercise CP-400
CyclePlus Recumbent Bike w/ Arm Exercise $2,695.00
woman exercise on HCI PhysioCycle XT UBE Arm Bike and Recumbent Cycle XT-800
HCI PhysioCycle XT UBE Arm Bike and Recumbent Cycle XT-800 Muscle Recovery Physical Rehabilitation Physiotherapy Training Healthy and Safe Workout
PhysioCycle XT UBE Arm Bike and Recumbent Cycle $2,495.00

Our Trusted Clients

Logo of Anytime Fitness featuring a stylized figure in motion to the left, represented with curved lines and angles, followed by the words ANYTIME FITNESS in bold, uppercase letters. The design is in grayscale.
Marriott Bonvoy logo with the word Marriott in smaller font above the larger word Bonvoy. The O in Bonvoy is stylized with a small circle inside it, resembling a location pin.
Logo of the YMCA featuring a stylized grey Y symbol with the word the on the left and YMCA written vertically on the right.
Logo of the Ventura Fire Department featuring a firefighters helmet emblem. It includes symbols like a flame, a cross, and visuals of a bear and building. The text reads Protecting Life • Property • Environment and Est. 1875.
The image shows the Orangetheory Fitness logo, featuring stylized text with Orangetheory in lowercase and FITNESS in uppercase below. An abstract orange design resembling molecules is on the left.
Logo of The George Washington University with the text THE GEORGE WASHINGTON UNIVERSITY WASHINGTON, DC in black capital letters, framed by two horizontal lines above and below the text, on a white background.

Shopping Guide for Physical Therapy Recumbent Bikes

1. Seat access and transfer

This is the specification that decides most clinical purchases, and it is the one most product pages bury.

  • Removable seat. Only the PhysioStep PRO has one. The 20 inch seat lifts out entirely so a patient trains directly from their wheelchair. If you treat patients who cannot transfer, this is the machine.
  • 360 degree swivel seat. The PhysioStep PRO, MDX, and LXT all rotate their 20 inch seats a full circle, so a user sits down sideways and then turns to face forward instead of shuffling in past a frame. For anyone with hip restrictions or balance loss, this cuts fall risk more than any other single feature.
  • Step-through or walk-through only. The CyclePlus and PhysioCycle XT have open frames with no crossbar, but the seats do not rotate. Fine for a home user who walks in unaided. Not enough for a clinic treating transfer dependent patients.

On seat height: Health Care International does not publish a floor-to-seat figure for any of these units, and we will not guess at one. If seat height is the deciding measurement for your patients or your ADA review, call us and we will measure the specific unit before it ships.

2. Stroke length and motion type

These five machines move the legs in three different ways, and the difference matters more than resistance levels do.

  • Adaptive stepping, 0 to 8 inches (PhysioStep PRO). Each leg steps independently, and the stroke can start at literally zero. That lets a therapist isolate a weaker side after a stroke or a unilateral surgery, and start a patient at a range of motion they can actually reach.
  • User controlled stepping, 1 to 12 inches (PhysioStep LXT). A linear 2:1 contralateral stepping motion, closer to a walking pattern than a pedal circle. The user sets the depth of each step, so range grows naturally as they recover.
  • Fixed 12 inch elliptical stride (PhysioStep MDX). A true seated elliptical path that engages upper and lower body together. Smooth and continuous, but the stride is not adjustable, so it suits users who already have the range.
  • Standard cycle motion (CyclePlus and PhysioCycle XT). Circular pedaling with a fixed crank. No stroke length to set. Best for conditioning and endurance rather than range of motion work.

3. Weight capacity

Capacity climbs steeply with price here, and it is worth checking against your actual population rather than an average. The PhysioStep PRO and MDX rate to 500 lbs, the LXT to 450 lbs, the CyclePlus to 400 lbs, and the PhysioCycle XT to 300 lbs. If you run a bariatric program or a clinic with no upper cut-off, the 300 lb rating on the PhysioCycle XT will limit you no matter how attractive the price is.

4. Footprint and room planning

Every unit here is 60 to 65 inches long. That number alone will not tell you whether it fits.

  • A swivel seat needs clearance to rotate. Budget roughly 30 inches of open floor on the access side of the PhysioStep PRO, MDX, or LXT, or the swivel feature is wasted.
  • The MDX is the widest at 32 inches. The PhysioStep PRO and CyclePlus are the narrowest at 24 inches, which matters when you are lining machines up along a wall.
  • Height runs from 40 inches on the LXT to 52 inches on the PhysioCycle XT. The taller units carry vertical arm assemblies, so check for low ceilings, soffits, and sprinkler heads.
  • Measure your doorway. These ship in large sections and freight crews deliver curbside, not into the room.

Which one fits your setting

Physical therapy clinic or rehab center

Buy for the hardest patient you treat, not the average one. If any part of your caseload cannot transfer out of a wheelchair, the PhysioStep PRO is the only machine here that solves it, and its 0 inch starting stroke covers an early recovery stage nothing else reaches. If your caseload transfers fine but needs full body conditioning, the MDX does more work per session for $1,400 less.

Senior living, wellness center, or active aging program

The LXT is usually the right answer. The linear stepping pattern feels like walking, which residents accept faster than a pedal circle, and 32 resistance steps let a very deconditioned user start at something they can actually turn. The 360 degree swivel seat is the feature your staff will thank you for.

Home use

For a home recovery, the honest question is what you are recovering from. Rebuilding general endurance after surgery or a cardiac event: the CyclePlus at $2,695 gives 400 lb capacity, 32 resistance steps, and self powered operation. Working around a weaker side or limited range under a therapist's home program: step up to the LXT, because adjustable stroke length is the feature that actually changes the outcome. Want arm and leg work at the lowest price and you weigh under 300 lbs: the PhysioCycle XT.

Want help picking between these five?

We have sold rehab cardio equipment since 2009 to clinics, senior living communities, schools, and home buyers. Tell us the patient population, the room dimensions, and the budget, and we will tell you which one to buy. Request a quote or call (855) 228-7348, Monday to Friday, 9am to 5pm ET. Purchase orders and tax exempt orders welcome.

Compare our five models

PhysioStep PRO (SXT-1100), $5,695

  • Seat access: 20 inch seat, 360 degree swivel, and it removes entirely for wheelchair training.
  • Motion: independent stepping, one leg at a time. Adaptive 0 to 8 inch stroke.
  • Resistance 1 to 16. Max user weight 500 lbs. Footprint 65 x 24 x 44 inches.
  • Best fit: PT clinic. Stroke, post-surgical, and any protocol that needs one side isolated.

PhysioStep MDX (RXT-1000), $4,295

  • Seat access: 20 inch seat, 360 degree swivel, 14 fore and aft positions. Does not remove.
  • Motion: seated elliptical working arms and legs. Fixed 12 inch elliptical stride.
  • Resistance 1 to 16. Max user weight 500 lbs. Footprint 60 x 32 x 44 inches.
  • Best fit: clinic or active aging. Full body low-impact cardio with easy access.

PhysioStep LXT (LXT-700), $3,995

  • Seat access: 20 inch seat, 360 degree swivel. Fits users 4 ft 6 in to 6 ft 4 in.
  • Motion: linear 2:1 contralateral stepping. User controlled 1 to 12 inch stroke.
  • Resistance 1 to 32. Max user weight 450 lbs. Footprint 60 x 30 x 40 inches.
  • Best fit: senior living, clinic, serious home. Walking pattern cardio with the finest resistance steps.

CyclePlus (CP-400), $2,695

  • Seat access: walk-through frame, 17 inch seat, 25 fore and aft positions. No swivel.
  • Motion: circular pedaling plus rotating arm handles. Standard cycle motion.
  • Resistance 1 to 32. Max user weight 400 lbs. Footprint 63 x 24 x 51 inches.
  • Best fit: home and light clinic. Best capacity per dollar, self powered.

PhysioCycle XT (XT-800), $2,495

  • Seat access: step-through frame, 15 fore and aft seat positions. No swivel. Fits users 4 ft 10 in to 6 ft 3 in.
  • Motion: circular pedaling with the arms linked to the legs. Standard cycle motion.
  • Resistance 1 to 8. Max user weight 300 lbs. Footprint 60 x 25 x 52 inches.
  • Best fit: home and light clinic. Lowest entry price for linked arm and leg training.

Physical Therapy Recumbent Bikes FAQs

Which of these machines has a seat that removes for wheelchair access?

Only the PhysioStep PRO. Its 20 inch seat rotates 360 degrees and lifts out entirely, so a patient can train directly from their wheelchair.

The PhysioStep MDX and LXT also swivel a full 360 degrees for an easier side transfer, but their seats do not remove. The CyclePlus and PhysioCycle XT have open step-through frames with fixed, non-swiveling seats.
What is the seat height on these recumbent therapy machines?

Health Care International does not publish a floor-to-seat measurement for any of these units, and we will not guess at one.

If seat height is the deciding measurement for your patients or an ADA review, call us at (855) 228-7348 and we will measure the specific unit before it ships.
What stroke or stride length should I look for?

If a patient has very limited range, you want an adjustable stroke that starts near zero. The PhysioStep PRO steps 0 to 8 inches and each leg moves independently, so a therapist can isolate a weaker side. The PhysioStep LXT gives a user controlled 1 to 12 inch step in a walking-style pattern.

If the user already has full range and wants continuous cardio, the PhysioStep MDX runs a fixed 12 inch elliptical stride. The CyclePlus and PhysioCycle XT use a standard circular pedal motion with no stroke setting at all.
What is the highest weight capacity you carry?

500 lbs, on both the PhysioStep PRO and the PhysioStep MDX.

From there the ladder runs: PhysioStep LXT 450 lbs, CyclePlus 400 lbs, PhysioCycle XT 300 lbs. If you run a bariatric program or a clinic with no upper cut-off, check this before price.
How much room do I need around a swivel seat?

Budget roughly 30 inches of open floor on the access side of the PhysioStep PRO, MDX, or LXT. Without that clearance the seat cannot rotate fully and you lose the feature you paid for.

The machines themselves run 60 to 65 inches long. The MDX is the widest at 32 inches, and the PhysioStep PRO and CyclePlus are the narrowest at 24 inches. Also measure your doorway, because these deliver curbside, not into the room.
What is the difference between a recumbent stepper, elliptical, and bike?

A recumbent stepper moves the legs in a linear push, closer to a walking pattern, and the stroke depth can be set or adjusted. The PhysioStep PRO and LXT are steppers.

A recumbent elliptical traces a continuous oval path and usually drives the arms as well. The PhysioStep MDX is an elliptical with a fixed 12 inch stride.

A recumbent bike uses a plain circular pedal motion. The CyclePlus and PhysioCycle XT are bikes, and both add rotating arm handles. Steppers and ellipticals suit range of motion work. Bikes suit endurance and conditioning.
