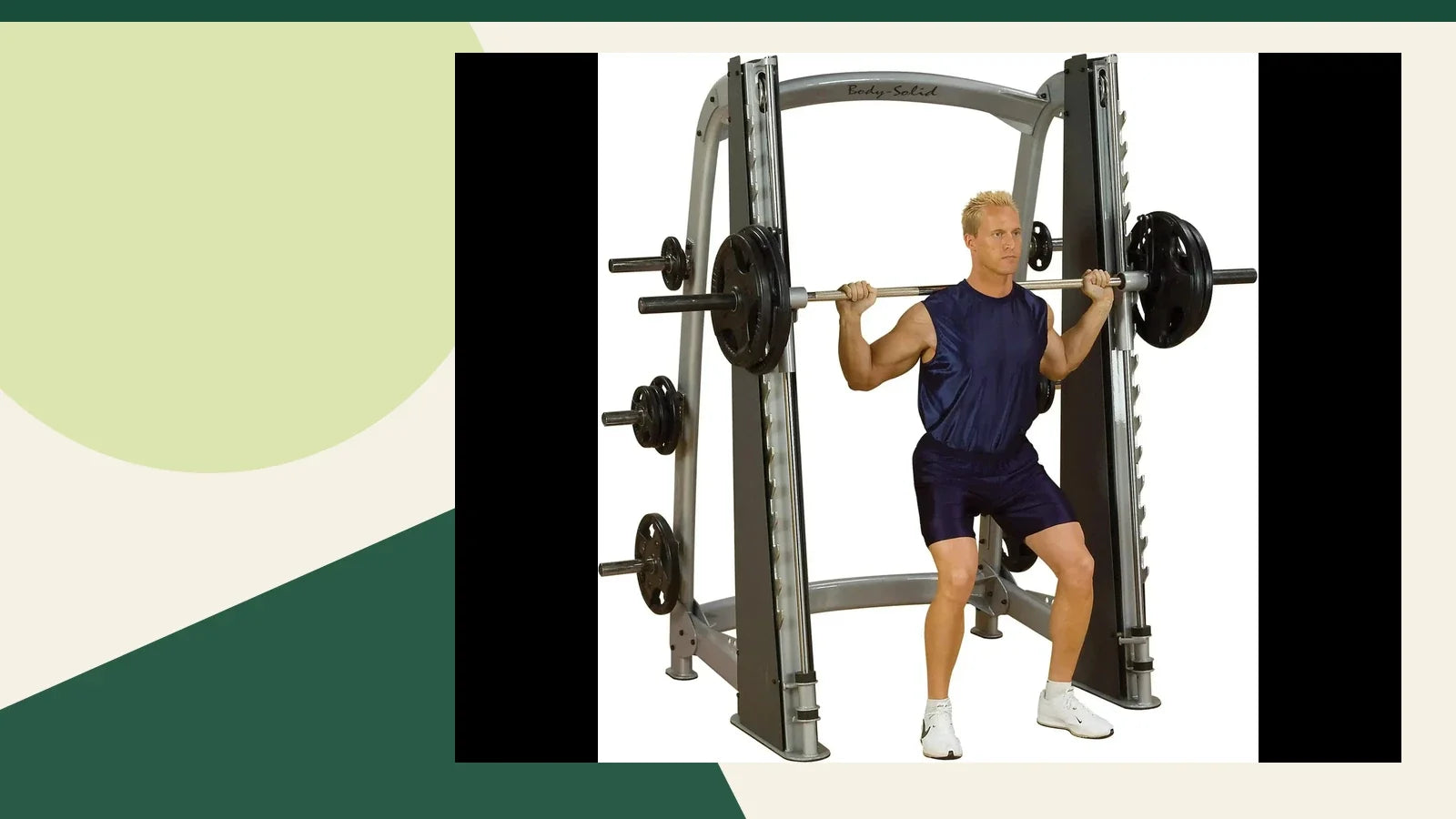

How Much Does a Smith Machine Bar Weigh? How to Measure Yours

Most Smith machine bars weigh somewhere between 6 and 45 pounds.

On a machine with no counterweight the bar usually lands between 15 and 25 pounds, and on a counterbalanced machine the felt weight can drop under 10 pounds or sit near zero.

There is no industry standard, so the only number that matters is the one on the machine you actually train on.

The rest of this article explains why the spread is that wide, then gives you three ways to measure your own bar in about ten minutes.

Why There Is No Standard Smith Machine Bar Weight

An Olympic barbell has a de facto standard because competition federations wrote one and manufacturers build to it.

Nobody competes on a Smith machine, so no governing body ever had a reason to standardize the bar.

That leaves each manufacturer free to pick a tube diameter, a wall thickness, a sleeve length, and a carriage design that suits the price point it is building for.

Then the counterweight system changes the answer again, because a machine can hide 20 or 30 pounds of bar behind a cable and a hanging weight.

Manufacturers also publish the figure inconsistently, and some list the raw mass of the bar while others list the resistance you actually feel at the hands.

The Four Types of Smith Machines, and What Each Does to the Bar Weight

Vertical Smith Machines

The rails run straight up and down, and the bar travels on a true vertical line.

Older commercial units and most budget home machines use this design, and the felt weight equals the bar's mass minus whatever the counterweight takes off.

Angled Smith Machines

The rails lean forward, usually somewhere between 7 and 12 degrees off vertical, so the bar moves up and slightly away from you through the press.

The angle exists to follow the natural forward drift of a bench or squat bar path, not to reduce the load.

It does shave a little weight off, but far less than most people assume, and the section below does that arithmetic.

Three-Dimensional and Multi-Plane Smith Machines

These add horizontal travel on top of the vertical rail, letting the bar move forward and back and sometimes side to side.

They carry more carriage hardware than a fixed rail machine, which usually makes the bar assembly heavier, and they are more likely to be counterbalanced to compensate.

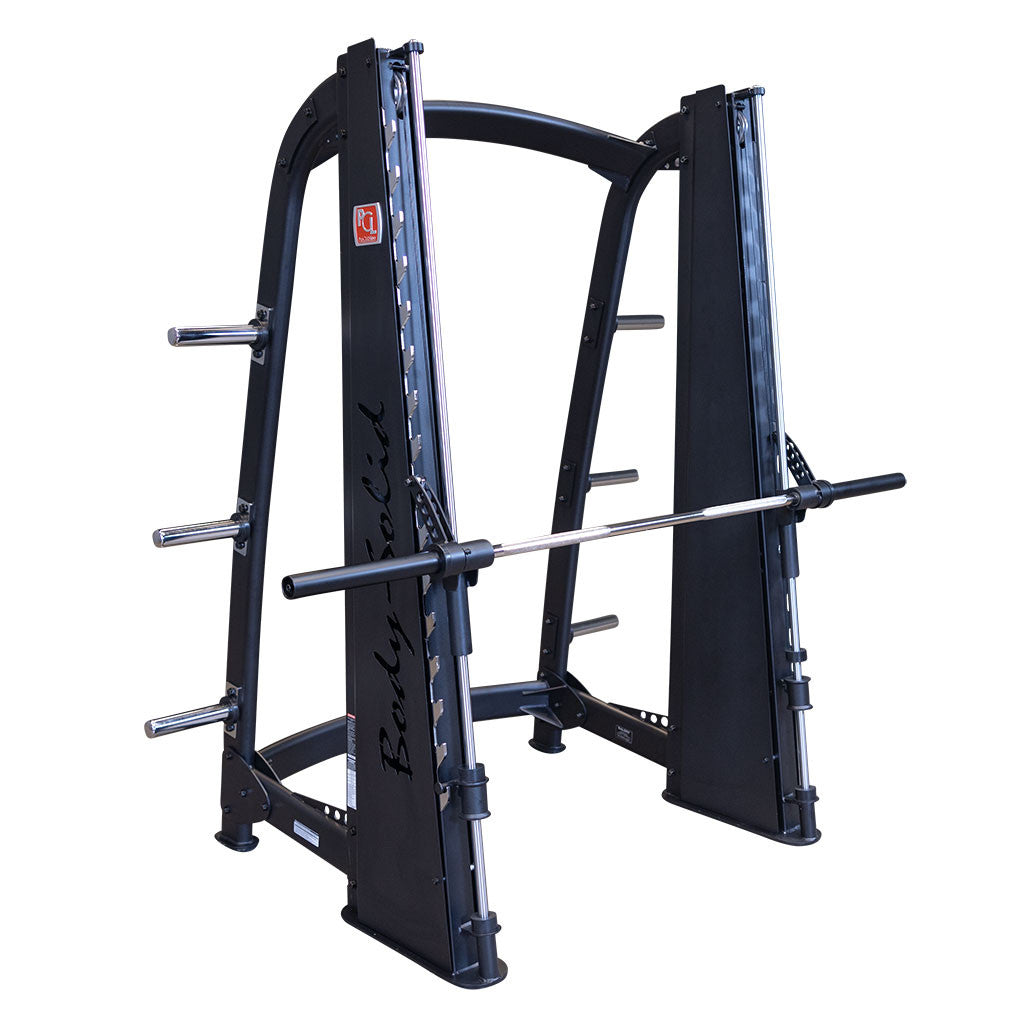

Counterbalanced Versus Non-Counterbalanced

This is the split that moves the number most, and it cuts across all three designs above.

A non-counterbalanced bar is exactly what it sounds like, and you lift its full mass.

A counterbalanced bar is tied to a hanging weight through a cable and pulley, so part of the bar's mass is carried by the machine rather than by you.

Partially counterbalanced machines split the difference and leave you a real but reduced starting load.

How the Counterweight Subtracts From the Load

The mechanism is simple, and there is nothing clever hiding inside it.

A cable runs from the bar carriage, up over a pulley at the top of the frame, and down to a weight hanging inside or behind the upright.

That hanging weight pulls up on the carriage with a force equal to its own weight, so the load you feel is the bar's mass minus the counterweight's mass.

A 45 pound bar with a 35 pound counterweight leaves you pressing about 10 pounds, which is how two machines that look identical can feel 35 pounds apart.

A modeling analysis published in the Journal of Strength and Conditioning Research treated a 20 kilogram counterweight, roughly 44 pounds, as a normal design value for this class of machine, which shows how large the term can get.

The effect is measurable rather than theoretical, and a study of Smith machine bench throws in the International Journal of Sports Medicine found that mean and peak force and power were significantly underestimated at every load tested when the counterweight was left out of the calculation.

The Felt Load Formula: What the Rail Angle and the Counterweight Really Subtract

Forum threads tend to treat the rail angle as the big factor and the counterweight as a footnote, and the arithmetic says it is the other way around.

Here is the calculation in plain text.

Felt load = (bar mass minus counterweight mass) times the cosine of the rail angle, plus friction

The rail angle is measured from vertical, so a straight up and down machine is 0 degrees and a typical angled machine sits at 7 to 12 degrees.

Only the share of gravity acting along the rail resists you, and that share is the total weight multiplied by the cosine of that angle.

What the Angle Is Actually Worth

At a realistic 12 degrees the rail removes about half a pound from a 25 pound bar, which is smaller than the stamping tolerance on a pair of cast plates.

Load that same bar to 185 pounds total and the 12 degree rail removes roughly 4 pounds, or a little over 2 percent.

What the Counterweight Is Worth

Put a 35 pound counterweight on that same 25 pound bar and you are not pressing 24.5 pounds any more, you are being pulled upward by 10.

The counterweight term is measured in tens of pounds and the angle term is measured in ounces, so if you can only establish one of them, establish the counterweight.

Every Assumption, Stated Out Loud

• The rail angle is between 0 and 20 degrees from vertical. That band covers the commercial and home machines in general circulation, and the cosine of a small angle stays close to 1.
• The bar tracks the rail exactly. That is what the machine is for, so it holds unless a bushing has failed.
• Friction is small enough to leave out of the estimate. The published modeling work on Smith machine resistance mechanisms sets friction to zero for the same reason, though real bushings are never frictionless.
• The counterweight stays fully engaged through the whole travel. A frayed cable or a fouled pulley breaks this, and the float test below will expose it.
• Bar mass and counterweight mass come from a manufacturer figure or your own measurement. No published survey of real machines exists to draw them from.

How the Answer Changes If an Assumption Changes

If your rail is really 20 degrees rather than 12, the subtraction roughly triples, from about 2 percent of the total load to about 6 percent.

If the counterweight is 10 pounds heavier than you assumed, your felt load is 10 pounds lower, and that single error swamps anything the rail angle can do.

If friction is meaningful on a worn machine, the felt load is higher than this formula says on the way up and lower on the way down.

Treat the table and the formula as a WorkoutHealthy planning estimate rather than an industry standard or a manufacturer specification.

Friction: Bushings, Linear Bearings, and the Part Nobody Publishes

Every Smith machine carriage rides on either nylon or bronze bushings, or on sealed linear bearings.

Bushings are cheaper and quiet when new, and they drag harder as they wear and as grit works into the rail.

Linear bearings roll instead of slide, so they hold a lighter and more consistent drag across the life of the machine, and they cost more to build.

Friction adds to the load on the way up and subtracts from it on the way down, which is why a sticky machine feels heavy pressing and vague lowering.

No manufacturer publishes a friction figure, and there is no reliable measured number for it across real machines, so any article that hands you one is guessing.

Commercial Machines Versus Home Machines

Commercial Smith machines are built for a room full of strangers, so the frame is heavier steel, the carriage is larger, and the bar assembly generally weighs more.

Many commercial units are also counterbalanced, because a gym does not want a first timer pinned under a bar that starts at 45 pounds.

Home and light commercial machines usually run lighter bars, often in that 15 to 25 pound band, and counterbalancing shows up less often at lower price points.

The practical result is that the word commercial tells you almost nothing about felt weight, since a heavy bar with a heavy counterweight can end up lighter in the hands than a bare 20 pound home bar.

If you are still choosing a machine rather than measuring one you own, our comparison of the Smith machine and the power rack handles that purchase question directly.

How to Measure Your Own Smith Machine Bar

Method 1: The Bathroom Scale Test

1. Set a bathroom scale on the floor directly under the center of the bar, and put a solid box or step platform on it so the box reaches the bar's lowest travel point.
2. Weigh the box on its own first and write that number down, or tare the scale with the box in place if it will tare.
3. Strip every plate off the bar and unhook it.
4. Lower the bar until it rests fully on the box, then release it slowly and step back.
5. Read the scale, subtract the box, and that is your felt bar weight.

Take the reading again at two or three heights along the rail, because a stable number confirms the counterweight is engaged through the whole travel.

Some digital scales will not register loads under about 10 pounds, so a mechanical dial scale is the better tool on a heavily counterbalanced machine.

Skip this method entirely on any machine where the bar cannot be released safely at the bottom of its travel.

Method 2: The Hanging Scale Test

Hook a digital luggage scale or a small crane scale between the bar and a strap anchored to the base of the machine, then pull the bar down until the strap goes tight.

On a counterbalanced machine where the empty bar floats upward, this reads the net upward pull directly, which a bathroom scale cannot do.

Use a scale rated well above the reading you expect, and check it against a known plate first so you know it is honest.

Method 3: The Float Test, Which Also Measures Friction

This one applies only to machines whose empty bar drifts upward on its own, meaning the counterweight outweighs the bar.

1. Unhook the empty bar and park it at mid travel.
2. Add small plates, 2.5 pounds at a time, until the bar stops drifting upward when you let go.
3. Keep adding, still 2.5 pounds at a time, until it starts drifting downward instead.

The load where it stops rising is the bottom of the balance band, and the load where it starts sinking is the top.

The midpoint of those two loads is how much weight you have to add before the bar begins to feel like anything at all.

The gap between them is roughly twice the friction force, so a 5 pound gap means about 2.5 pounds of drag and a 20 pound gap means the rails need cleaning.

What to Do With the Number Once You Have It

Write it on tape stuck to the upright, and record it alongside every Smith machine entry rather than logging plate weight alone.

A log that says 185 on one machine and 185 on another is comparing two different lifts.

The number matters most on light work and least on heavy work, since 20 pounds is a third of a 60 pound Smith machine shoulder press and 5 percent of a 400 pound squat.

If you run percentages off a tested max, test that max on the machine you will actually train on, or the percentages are fiction.

Deciding how those percentages turn into sets and reps is a separate question, and our guide to rep ranges, rest, and training goals covers it.

When a lift stops moving it is also worth ruling the bar out before rewriting the program, since a stalled bench press is sometimes a change of machine rather than a change in the lifter.

Common Questions About Smith Machine Bar Weight

Is a Smith machine bar always 45 pounds?

No, and that assumption is the single most common source of bad training logs on this machine.

The 45 pound figure comes from the Olympic barbell standard, which has nothing to do with how Smith machine bars are built.

Does the Smith machine make a lift easier?

Usually yes at the same plate load, because the bar is lighter than an Olympic barbell on most machines and the rails do the stabilizing for you.

How do I convert Smith machine numbers to barbell numbers?

You cannot do it cleanly, and anyone offering a fixed conversion factor is making it up.

You can subtract the bar weight difference honestly, but the stability difference is not a number, so keep two separate logs.

Do all angled Smith machines lean the same amount?

No, and manufacturers rarely publish the angle at all.

Most fall in the 7 to 12 degree band, and the practical point is that anything in that range barely changes the load.

References

1. Arandjelovic O. Common variants of the resistance mechanism in the Smith machine: analysis of mechanical loading characteristics and application to strength-oriented and hypertrophy-oriented training. Journal of Strength and Conditioning Research. 2012;26(2):350 to 363. PubMed 22228113. Accessed September 6, 2026.
2. Kobayashi Y, Narazaki K, Akagi R, Nakagaki K, Kawamori N, Ohta K. Calculation of force and power during bench throws using a Smith machine: the importance of considering the effect of counterweights. International Journal of Sports Medicine. 2013;34(9):820 to 824. PubMed 23459856. Accessed September 6, 2026.
